In the evolution of traditional livestock farming, “land” has always been the single most decisive factor sustaining productive output. The grazing cycle of a single large animal often corresponds to the natural regeneration cycle of several hectares of pastureland. However, with intensifying climate volatility, soil desertification, and increasingly uneven distribution of water resources, this highly land-dependent model of extensive grazing and forage cultivation is facing a severe marginal returns decline.
To break the structural constraint that “land area determines herd size,” the Hydroponic Fodder System has emerged as a modern, industrialized feed production solution grounded in Controlled Environment Agriculture (CEA). It compresses and restructures traditional two-dimensional farmland into a three-dimensional vertical production “digital workshop.”
When farmers or agricultural investors evaluate this technology, the first and most critical question is often: How much physical space does a hydroponic fodder system actually require?
If this question is answered purely in terms of static square meters, it clearly underestimates the systemic complexity of modern facility agriculture. The spatial demand of a hydroponic fodder system is a multidimensional problem that integrates spatial topology, fluid dynamics, thermodynamic flux, and logistics engineering.
Assessing its space requirements is, in essence, an exercise in translating physical volume into maximum daily production throughput through precise engineering design. This article systematically analyzes spatial allocation logic across different operational scales, microclimatic requirements within the system, and the supporting auxiliary infrastructure required to sustain full operation.
To accurately evaluate spatial requirements, engineers must abandon the traditional agricultural mindset of “available land first, output second,” and instead adopt an industrial reverse-engineering approach based on production capacity. Because hydroponic fodder operates on a highly standardized and linear production cycle, its spatial footprint is directly determined by the farm’s Daily Target Yield.
The core spatial innovation of hydroponic fodder systems lies in vertical stacking design. In conventional farming, light and water are limited to a single ground plane. In contrast, hydroponic systems use high-strength metal frames to extend growing trays vertically, typically in 4-tier, 5-tier, or even 7-tier configurations.
This enables a theoretical multi-fold increase in spatial efficiency.
A key metric is the Yield-to-Footprint Ratio:

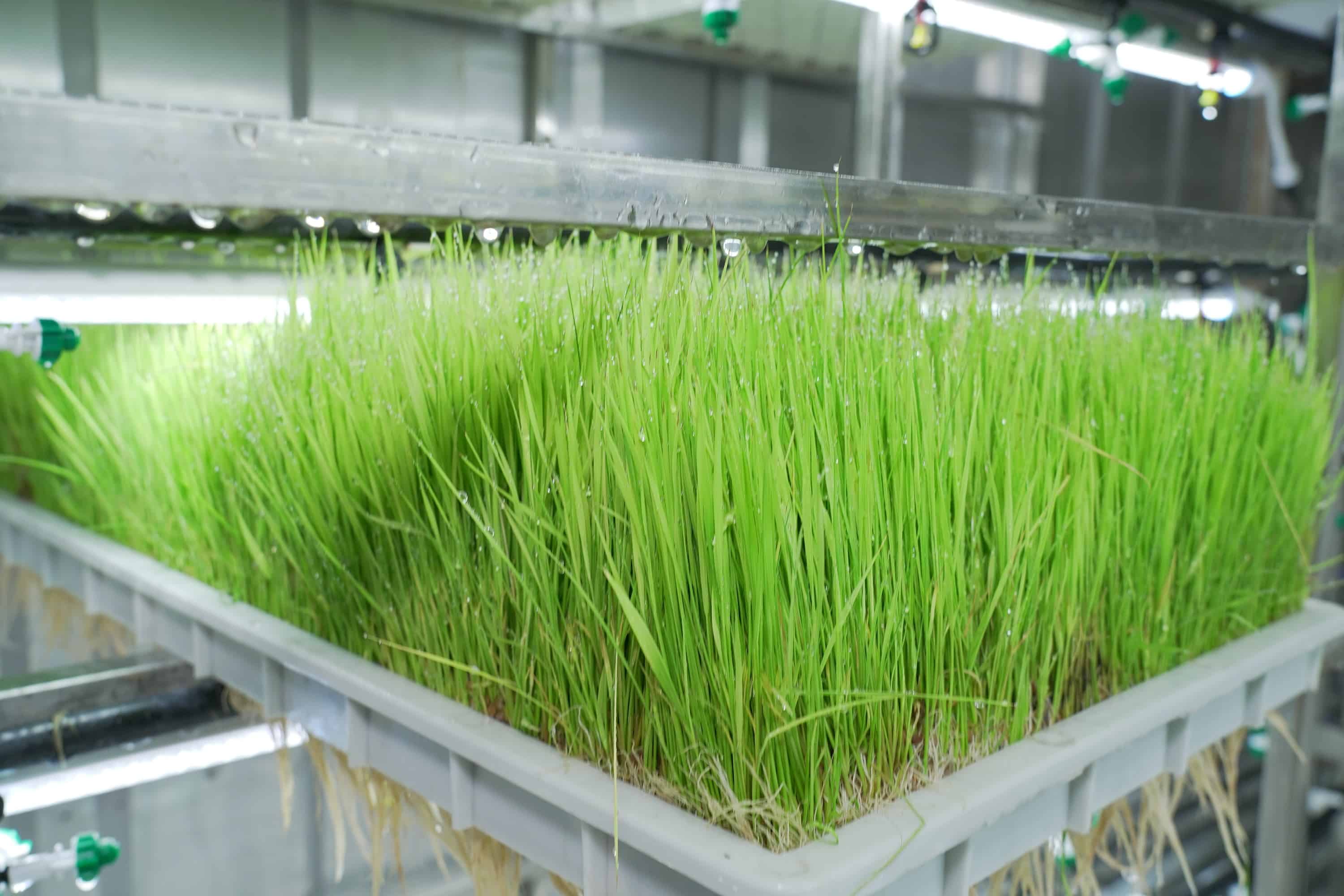

A standard hydroponic tray (2.4 m × 0.4 m) seeded with approximately 5 kg of grains (e.g., barley or wheat) can produce 30–35 kg of fresh, nutrient-rich fodder under optimal conditions.
This tray occupies roughly 1 m² of floor area.
When arranged in a 6-tier vertical rack system, the same 1 m² footprint effectively supports 6 trays simultaneously, multiplying daily output by a factor of six.
Based on output requirements, system configurations generally evolve through three tiers:
This scale typically serves small-to-medium livestock farms or specialty producers. The spatial form is often a containerized fodder unit or a retrofit within existing farm buildings. A standard 20-foot shipping container (approx. 15 m² footprint) can, with optimized multi-layer racking, achieve around 250 kg/day of fresh fodder output. This is a highly compact, plug-and-play configuration with minimal external spatial demand.
Once production reaches the ton-scale threshold, container limits are exceeded and systems transition into standalone greenhouse or dedicated facility structures. At this stage, aisle space for operators becomes a significant spatial factor.
Producing 1 ton of fresh fodder typically requires approximately 60–80 m² of net indoor building area. Design priorities shift from maximizing rack density to optimizing ergonomic workflow and operator accessibility.
At large scale, typically supporting dairy conglomerates or feedlots, spatial demand grows exponentially. Facilities require thousands of square meters of industrial buildings, with rack heights exceeding 4 meters. Automated conveyors or robotic handling systems are often necessary for material flow. At this level, the system resembles a fully automated logistics warehouse.
A common engineering misconception is assuming that minimizing spacing between racks and layers is always optimal.
However, hydroponic fodder systems operate within a highly active thermodynamic environment. Thousands of seedlings transpire simultaneously, generating significant latent heat and moisture. Without sufficient invisible buffer space, the system rapidly becomes susceptible to mold proliferation and root diseases.
Vertical clearance between layers determines not only maximum plant height but also airflow velocity and microclimatic stability.
Fodder typically reaches 15–20 cm in height at maturity. If tier spacing is too tight (e.g., 25 cm total clearance), the effective gap between canopy and upper tray may shrink to less than 5 cm.
From a fluid dynamics perspective, this creates severe boundary layer resistance, preventing airflow penetration. As a result, humid and warm air becomes trapped within the canopy, forming localized stagnation zones with near 100% relative humidity—ideal conditions for fungal contamination such as aflatoxin development.
Therefore, optimal tier clearance should be maintained at 35–45 cm. The additional 15–20 cm is not wasted space but a functional airflow buffer required to eliminate vertical temperature gradients.
Beyond internal spacing, rack systems must maintain strict boundary clearances from walls and ceilings.
If racks are placed directly against walls, thermal inconsistencies (especially in extreme seasonal climates) transfer unevenly to outer trays, creating asynchronous germination and disrupting production uniformity.
A minimum perimeter clearance of 50–80 cm is typically required. This allows conditioned air to circulate in a continuous loop, forming a stable airflow vortex that ensures consistent vapor pressure deficit (VPD) across all growing layers.
At its core, a hydroponic fodder system is a high-frequency material handling system. Seeds enter daily, while tons of fresh fodder are harvested and removed continuously. Without proper spatial planning for human movement, operational inefficiencies can quickly escalate.
Aisle width between rack rows is a critical trade-off between capital efficiency and operational performance:
Overly wide aisles (e.g., 1.5 m) reduce usable cultivation area and lower ROI.
Overly narrow aisles (e.g., 0.6 m) severely restrict movement when handling heavy trays, increasing collision risk and labor inefficiency.
From an ergonomic standpoint, optimal aisle width is typically 0.9–1.1 meters, allowing smooth passage of transport carts and sufficient maneuvering space for tray handling and maintenance tasks.
Hydroponic fodder systems require strict hygiene control, making spatial zoning essential for preventing contamination.
A properly designed facility follows a unidirectional workflow:
Soaking & Germination Zone
Growing Zone
Harvesting & Packaging Zone
These zones must be arranged linearly or in a U-shaped configuration. Materials and personnel must flow from clean input areas toward harvest output areas, with no reverse movement of unsterilized equipment back into germination zones. This spatial segregation is fundamental to modern biosecure facility design.
While attention is often focused on vertical green production racks, the supporting infrastructure that enables system stability is frequently underestimated.
A hydroponic fodder system is not merely racks and irrigation lines—it is a precision-controlled environmental system. Industrial HVAC units, dehumidifiers, and fresh air filtration systems are required to maintain stable temperature, humidity, and air exchange cycles.
To avoid occupying productive space and introducing heat interference, these systems must be housed in a dedicated 3–10 m² mechanical control room. This serves as the operational “brain” and “heart” of the system, containing controllers, dosing pumps, and environmental automation systems.
Seeds (e.g., barley, oats, maize) are the primary consumable input.
For a 1-ton/day system, approximately 160 kg of dry seed is required daily (assuming a 1:6 yield ratio). To mitigate supply risk, farms typically maintain 15–30 days of inventory, necessitating a dedicated dry, moisture-proof, pest-controlled storage facility adjacent to production areas.
Improper storage near high humidity environments will rapidly degrade germination rates.
Although hydroponic systems reduce water usage by over 90% compared to soil cultivation, they still require substantial water handling infrastructure. Systems must include storage tanks, UV sterilization, and reverse osmosis filtration to ensure sterile irrigation.
Equally important is a properly engineered drainage network with floor channels and slope design. Without this, water accumulation can compromise humidity control and create serious operational safety risks. These systems must be embedded into foundational architectural planning.
In conclusion, the question “how much space does a hydroponic fodder system require?” cannot be answered as a single number. It is instead a multidimensional optimization outcome derived from production targets, microclimate engineering, logistics flow design, and auxiliary infrastructure integration.
Through vertical stacking and spatial compression, hydroponic systems transform agricultural land demand from hectare-based outdoor dependencies into square-meter-level industrial indoor production systems. This shift not only dramatically increases land-use efficiency but also liberates livestock production from climatic uncertainty, enabling year-round standardized feed production.
