Energy Consumption Analysis of Hydroponic Fodder Systems: From Power Usage to Energy Optimization

Analyzing the energy consumption of a hydroponic fodder system is not merely about calculating how many kilowatt-hours the system uses each day. More profoundly, it reflects the ongoing transformation of modern agriculture toward efficiency, sustainability, and environmental responsibility. Traditional cultivation relies heavily on land, climate, and seasonal changes, while hydroponic fodder systems replace these uncertainties with technology. Yet, this "electricity-for-land" model makes energy the new core variable. Only by understanding and optimizing energy use can such advanced systems achieve both economic and ecological value.

Energy analysis, first of all, represents a systems-thinking approach. Every component of a hydroponic fodder system — from lighting to water circulation, from climate control to automation — continuously consumes energy. These energy inputs are converted into the driving force behind plant growth. Without understanding the proportion of energy use in each process, it is impossible to determine which parts are inefficient or which areas can be improved. For instance, an energy audit might reveal that LED lighting is the primary power consumer, prompting the adoption of smart lighting control or natural light compensation systems. Such analysis not only reduces electricity costs but also forms the foundation for improving the overall resource efficiency of the system.

Secondly, energy consumption analysis is closely tied to sustainability. Hydroponic systems are often promoted as green solutions for the future of animal feed production, but "green" does not come automatically. If electricity consumption is excessive or carbon emissions increase, the environmental advantage of the system diminishes. Therefore, studying energy use is not just a technical evaluation — it is also a measure of ecological balance. By understanding the structure of energy consumption, designers can integrate solar panels, energy storage systems, and waste heat recovery technologies to create a closed-loop energy model.

More importantly, energy analysis helps operators find the optimal balance between economic efficiency and environmental responsibility. For livestock farms, the true value of a hydroponic fodder system lies in its ability to provide continuous, stable, and low-risk feed production. If the system maintains high yield while keeping energy costs under control, the model becomes replicable and commercially viable. Energy analysis thus serves as a key decision-making reference — it not only reveals how much electricity a system consumes but also shows how much value each kilowatt-hour generates.

From a broader perspective, studying energy use is also a way to understand the technological cost of modern agriculture. It highlights a fundamental shift — the future of farming will no longer depend on resource competition but on efficiency competition. Through quantitative and optimized energy management, hydroponic fodder systems can balance energy savings, productivity, and environmental protection, becoming a truly sustainable agricultural solution.

I. Main Sources of Energy Consumption

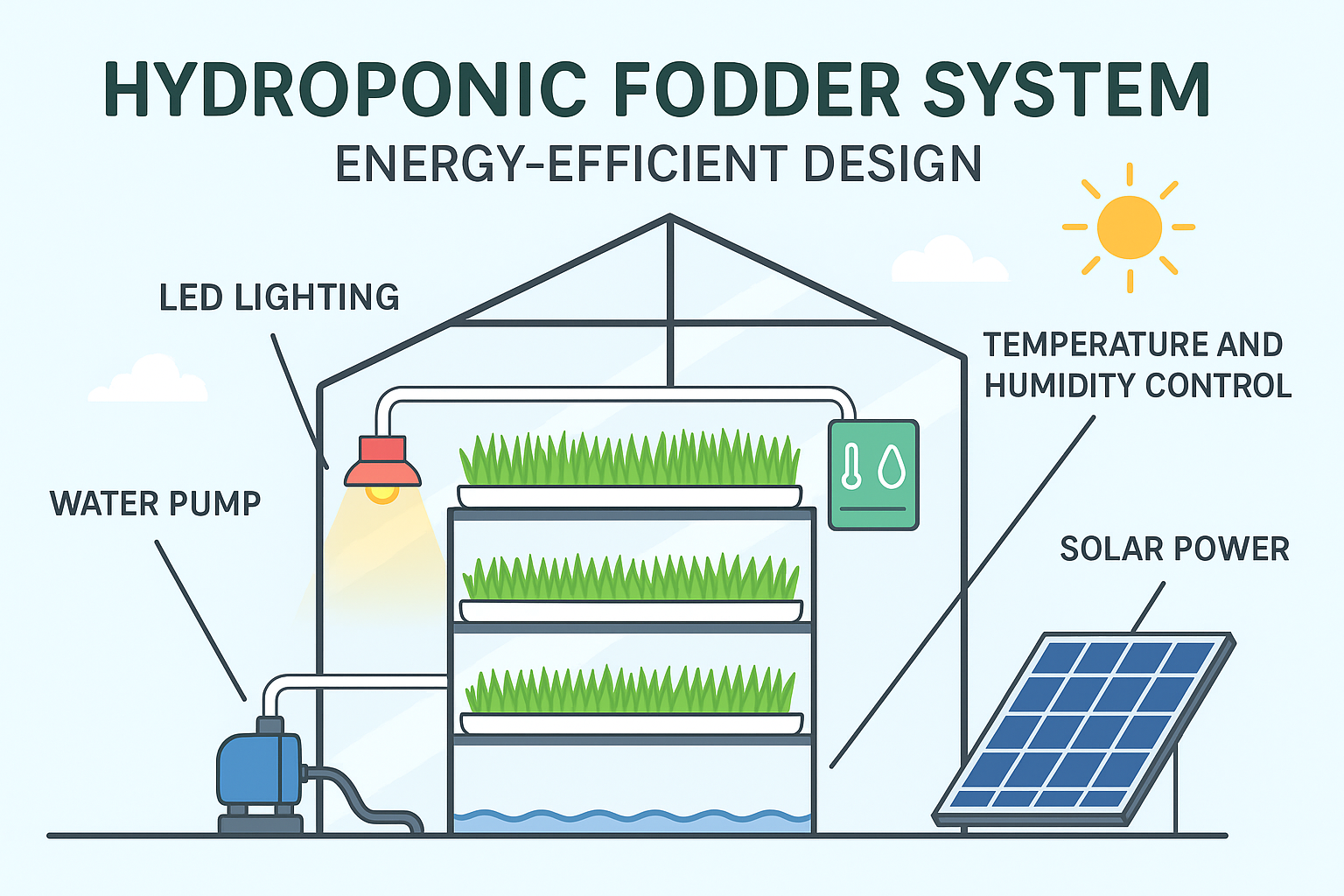

The power consumption of hydroponic fodder systems primarily comes from four components: lighting, circulation pumps, climate control equipment, and automation systems.

Lighting System (LED)

Light is a key factor for photosynthesis in fodder growth. Modern systems widely use high-efficiency LED lights to replace traditional fluorescent or sodium lamps.

Power Analysis: The efficiency of LED lights typically ranges from 100–150 lumens per watt. For example, an LED panel covering a 6 m² growing area consumes about 0.2–0.3 kWh per hour.

Operating Time: Fodder generally requires 10–12 hours of daily illumination. Therefore, a single-layer system consumes about 2–3 kWh of electricity per day, while multilayer systems increase proportionally.

Circulation Pump

The pump circulates nutrient solutions and delivers oxygen to maintain root health.

Power Analysis: A commonly used submersible pump has a power rating of 30–60 W, consuming about 0.03–0.06 kWh per hour. If operated intermittently (e.g., 15 minutes per hour), actual daily power usage is only around 0.5 kWh.

Climate Control System

This includes fans, humidifiers, and thermostats that stabilize the environmental conditions inside the growing chamber.

Power Analysis: A small-scale setup typically consumes less than 100 W per hour. Under automated temperature control, the system only activates when temperature or humidity deviates from set values.

Energy-Saving Features: Many designs incorporate insulation layers and natural ventilation to reduce the frequency of cooling or humidifying operations.

Automation and Sensor Systems

These include timers, environmental sensors, and microcontrollers. Their energy demand is extremely low—usually less than 0.2 kWh per day for the entire system.

II. Overall Power Consumption Evaluation

Taking a typical six-layer hydroponic fodder system as an example (capable of producing 40–60 kg of fresh fodder per day), the estimated daily energy consumption is as follows:

This means the system consumes about 400 kWh per month.

At an industrial electricity rate of roughly 0.8 RMB per kWh, the monthly electricity cost is approximately 320 RMB. Compared with purchasing an equivalent amount of green fodder, this operational cost remains significantly lower.

III. Key Directions for Energy-Saving Design

Modern hydroponic fodder systems are no longer synonymous with high energy consumption. Technological optimization and energy integration have made them increasingly sustainable.

Smart Lighting Control

Light sensors adjust brightness in real time and automatically optimize illumination intensity and duration according to the growth stage of the sprouts, reducing lighting energy use by about 20%–30%.

High-Efficiency Water Circulation

A closed-loop circulation design increases water-use efficiency to over 95%, reducing the need for frequent pump activation and thus indirectly lowering power consumption.

Solar Power Integration

In remote farms or ranches, systems often integrate photovoltaic panels to achieve off-grid operation. A 10 m² solar array can easily sustain a small fodder system throughout the day.

Thermal Reuse and Insulation Design

Greenhouse structures with multilayer insulation materials and heat-recovery modules can further cut total energy consumption to less than half that of conventional systems.

IV. Balancing Energy Use and Economic Efficiency

When evaluating the issue of "power consumption," it is crucial to consider not just absolute electricity usage but the input–output ratio:

Each kilowatt-hour of electricity can produce 4–5 kg of fresh fodder.

Compared with traditional cultivation, there is no need for soil tillage, irrigation, fertilization, or transportation.

Year-round production ensures a stable and self-sufficient feed supply.

In other words, while the system requires electricity, its energy-use efficiency is exceptionally high, and the yield per unit of energy far surpasses that of conventional methods.

V. Conclusion

Hydroponic fodder systems indeed rely on electricity, but they do not belong to the "high-energy-consumption" category. Instead, they represent a "high-efficiency energy utilization" model. Through intelligent lighting control, water recycling, thermal management, and renewable energy integration, the overall energy use can remain minimal.

For modern livestock farms, this stable, eco-friendly, and automated feed production method not only saves energy but also reduces long-term operational costs, representing the future direction of sustainable animal husbandry.
